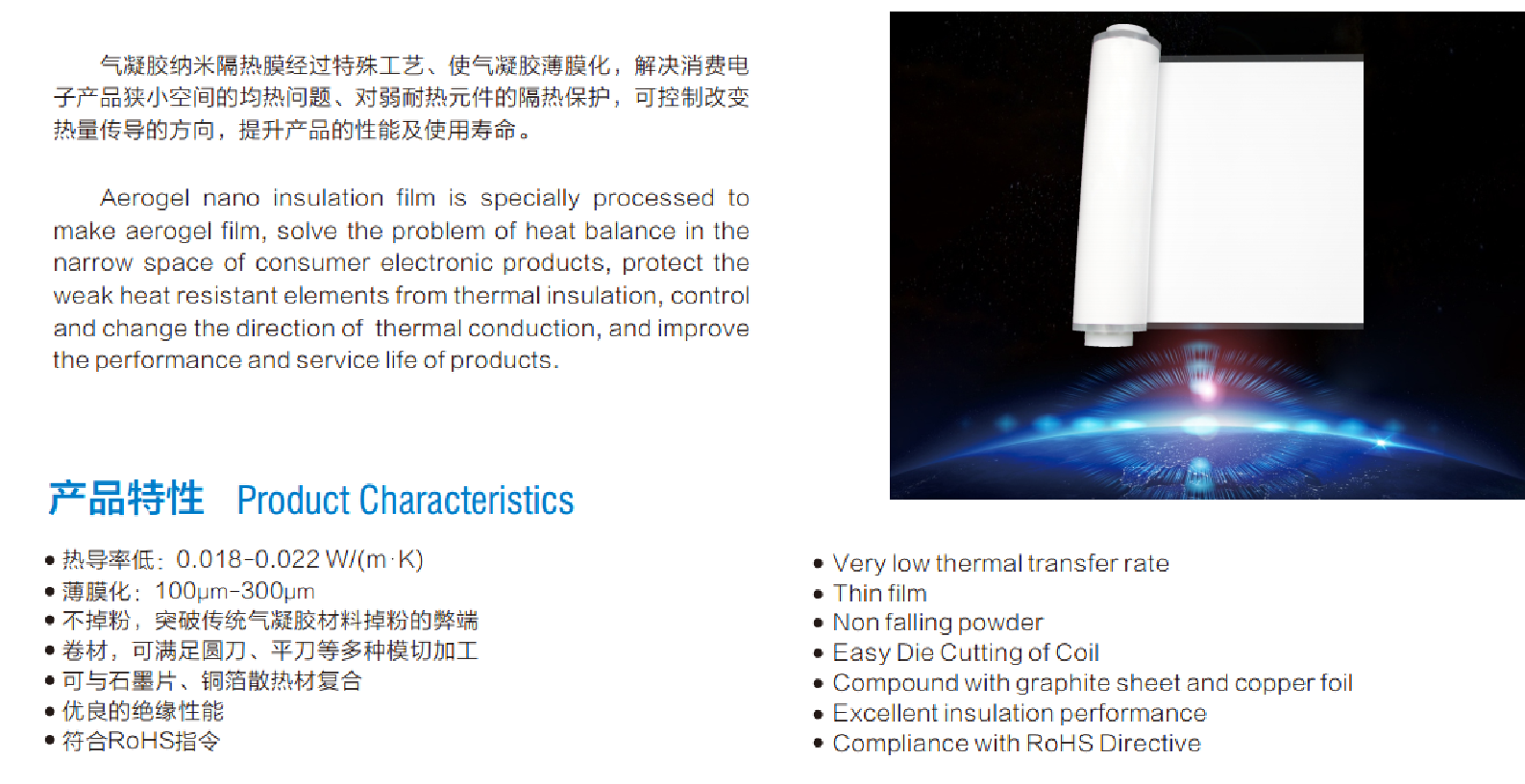

氣凝膠隔熱膜,是一款新型氣凝膠薄膜狀納米隔熱材料,幫助客戶解決消費電子產品狹小空間的均熱問題及對弱耐熱元件的隔熱保護,提高產品的性能及使用壽命,同時提升人體感受的舒適度。
Aerogel thermal insulation film is a new type of aerogel film-like nano thermal insulation material, which helps customers solve the heat problem of consumer electronics in small spaces and thermal insulation protection for weak heat-resistant components, and improve product performance and use Life expectancy, while improving the comfort of the human body.
氣凝膠隔熱膜,是一款新型氣凝膠薄膜狀納米隔熱材料,幫助客戶解決消費電子產品狹小空間的均熱問題及對弱耐熱元件的隔熱保護,提高產品的性能及使用壽命,同時提升人體感受的舒適度。


According to customer needs size stamping or cutting. 可按客戶需求尺寸沖型或裁切。
| Product parameter 產品參數 | ||
| Product number 產品型號 | ETNF | ETNR |
| thickness 厚度(μm ) | 50μm-300μm | 50μm-300μm |
| Thermal conductivity 熱傳導率W/(m·K) | 0.018~0.022 | 0.025~0.030 |
| Temperature resistance range 耐溫范圍 (℃) | - 40 ~ 150 | - 40 ~ 150 |
| Long-term use temperature 長期使用溫度(℃) |
120 |
120 |
| Flame retardant 阻燃性(UL94) | / | UL94 V-0 |
| Dielectric strength 介電強度(KV/mm) | ≥4 | ≥4 |
| Volume resistivity 體積電阻率(Ω·cm) | ≥1.0×1013 | ≥1.0×1013 |
| size 尺寸 | Rolls, can be customized 成卷,可定制 | |
● 所記錄的數據僅為測定值的1例,並非為保證值;
● 在使用前,務必由貴公司進行事先試驗,有關於對於使用目的的適合性及安全性。均由貴公司承擔責任,故請予確認。
