Graphene superconducting silicone sheet has excellent thermal conductivity, stable product performance, low thermal resistance, effectively improves the heat transfer speed, high viscosity, easy to bond and use, soft and flexible
石墨烯超導矽膠片具有優異導熱性能，產品性能穩定、低熱阻、有效的提高熱能傳遞速度，自身黏性度高、易於粘接使用，柔軟而富有彈性
Super good thermal conductivity (15-25W/M.K) 超好導熱率(15-25W/M.K)
Low thermal resistance 低熱阻
Super soft, good surface compatibility 超柔軟，表面兼容性很好
Good resilience, high reliability in long-term use 回彈好，長期使用可靠性高
Lightweight, good thermal stability 輕質化，良好的熱穩定性能
High-precision, high-tech product application 高精尖、高科技產品應用

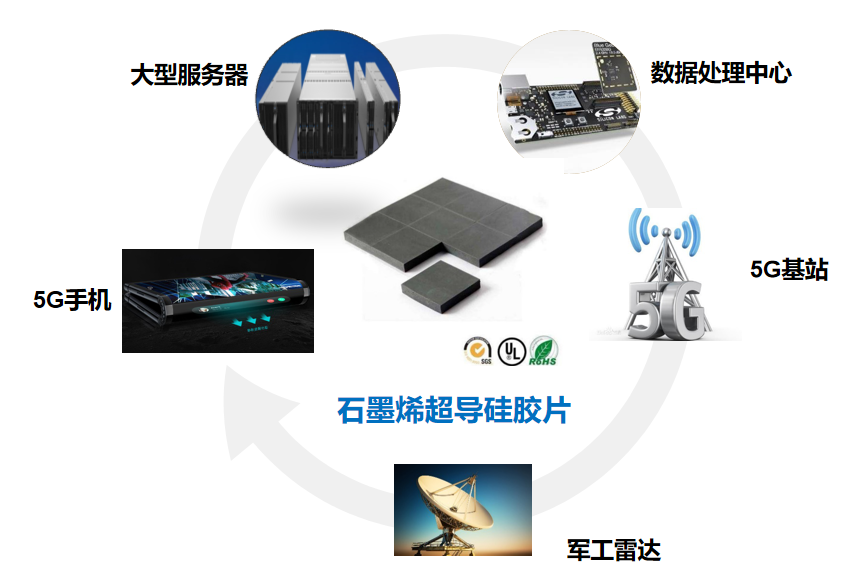

LED lighting, lighting equipment, household appliances, LCD displays, semiconductors and heat sinks, communication products, smart phones, tablet computers, desktop computers, notebooks and other portable computers, high-power power supplies
LED燈飾、照明設備、家用電器、LCD顯示器、半導體與散熱片之間、通信產品、智能手機、平板電腦、台式電腦、筆記本等便攜式電腦、大功率電源
According to customer needs size stamping or cutting. 可按客戶需求尺寸沖型或裁切。
| Property特性 | LBD-GPP2500C | Unit | Tolerance | Test Method |
| Composition 主要成份 | Filled silicone elastomer and Graphene | — | ||
| Color 颜色 | Black（黑色） | — | — | Visual |
| Thermal conductive 导热率 | 25 | W/m.K | ±5 | ASTM D5470 |
| Thermal resistance 热阻(1mm,@20psi) | ≤0.12 | K*in2/W | ±10% | ASTM D5470 |
| Thickness 厚度范围 | 20~80(1mil=0.0254mm) | mil | ±10% | ASTM D374 |
| 0.5~2 | mm 毫米 | ASTM D374 | ||
| Hardness 硬度 | 60 | Shore 00 | ±5 | ASTM D2240 |
| Density 密度 | 2.5 | g/cm³ | ±0.2 | — |
| Temperature Range 操作溫度 | -50～+180 | ℃ | — | — |
| Tensile strength 拉伸強度 | ≥0.1 | Mpa | — | ASTM D412 |
| Elongation rate 延伸率 | ≥30 | % | — | ASTM D412 |
| Compression ratio 压缩比（@50psi） | ≥25 | % | — | ASTM D695 |
| Flame Rating 阻燃等級 | UL 94 V-0 | — | — |
UL 94 (UL FileE495119) |
| Insulation 绝缘性能 | 导电 | — | — | — |
| Standard Sheet Size 标准片材尺寸 | 150*150 | mm | — | — |
